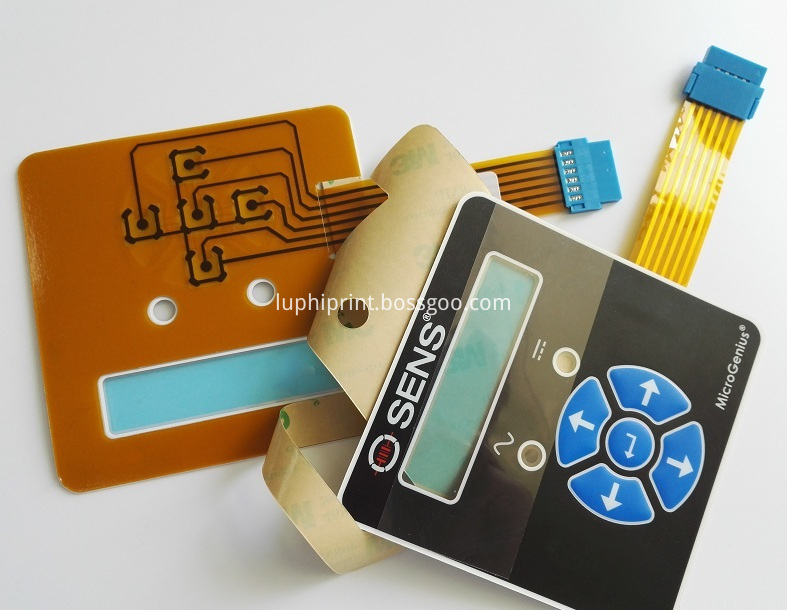

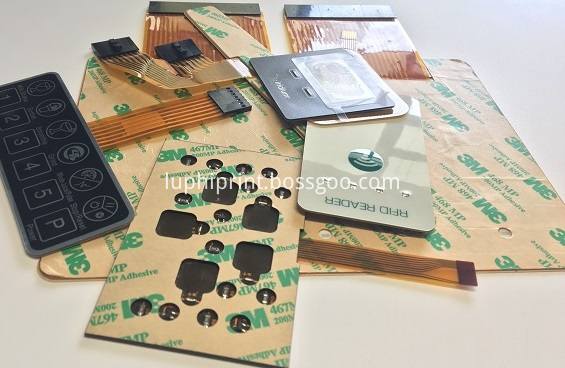

Digital Printing Graphic FPC Circuit Membrane Switch
|Terms of Trade:||FOB,CIF|
|Min. Order:||100 Piece/Pieces|
|Delivery Time:||15 Days|
|Packaging:||10pcs into PP bag, then in to hard carton box|
|Place of Origin:||China|
Model No.: VTMS00300
Digital Printing Graphic FPC Circuit Membrane Switch VTMS00300
LUPHITOUCH established in 2008 and can customize different kinds of human machine interface membrane keypads, membrane swithes for different customers in different application industries.
Our products including super big size keypads, digital printing graphic membrane keypads, FPCc circuit keypads, PCB circuit keypads, capacitive touch membrane switches, rubber keypad switches, LGF backlighting membrane switches etc.
We are ISO9001 and ISO13485 certified manufacturer in China. 95% of products are exported to USA and Europe. With our more than 10 years experiences we can give our design suggestions to our customers and also can provide best manufacturing service to them.
|1||Max. Size:||1200mm x 1000mm|
|2||Overlay Material:|| PET: Autotype (Autotex F150,F200,F280, V150,V200,V280, |
Autoflex EBG130, EBG180, EBG250,EBA130, EBA180, EBA250)
Autotex : XEV150, XEF200;
PC: GE LEXAN--8010 8B35 8B35F HP92S HP40 FR700 FR60
|3||Spacer:||3M Adhesive, NITTO, TESA, SONY,SEKISUI, Domestic Adhesive|
|4||Back Adhesive:||3M(Mainly), Others(Little)|
|5||Silver Paste:|| CHANGSUNG: CSP-3163, CSP-3352,CSP-5150; |
ACHESON:ED 725A(6S-61),ED 427SS,ED 479SS,ED 976SS HV;
FUJIKURA and OTTI
|6||Oil Ink:||SEIKO, JUJO, DUBUIT, PROELL,NORCOTE UV|
|7||Carbon Paste:||FUJIKURA, ACHESON ED 581SS, OTTI|
|8||6 Layers Metal dome Type Membrane Switch Structure||Overlay + Spacer + Dome Retainer + Spacer + Circuit Layer+ Back adhesive|
|9||4 Layers Polydome Type Membrane Switch Structure||Overlay + Spacer + Circuit + Back adhesive|
|11||Insulation Resistance||≥10MΩ (100VDC)|
|12||Base Material Voltage Durable||2000V DC|
|17||Key Travel||Flat type: 0.05mm-0.5mm, Tactile Type: 0.1-1.5mm|
|20||Storage Condition||Temperature: -40ºC~+85ºC ,Humidity: ≤98% RH|
|21||PET Circuit Tail Flexible Feature|| 180°to any angle |
---PACKAGING & SHIPPING---
|10 pcs in PP bag, then in hard carton box or Meet Customer's Demand|
|Delivery Detail||13~14 working days|
|Shipping||TNT, DHL, UPS, FedEx|
---OUR SERVICE---> Pre-Sale Support:
1) Communicate with customers carefully for all requirements and specifications;
2) Give our design improvement suggestions to customers;
3) Provide several different solutions for our customers to comparision;
4) Design the engineering artwork for customer's approval;
5) Provide relevant materials datasheets and certificates.
> LUPHITOUCH's gold after-sales service includes:
1) Communicate with customer before the shipment and help customer to select a high cost performance of shipping method;
2) Use the best packing method to ensure the economical shipping fees and also protect the products well;
3) After shipped out the products, we will inform customer in time and tell the express tracking number to them so that they can trace the packages;
4) After customer received goods, follow up the goods quality timely;
5) If the customer met some assembly problems, our engineers can provide the technique support on line or at customer's factory;
6) If the delivered products have quality problems, and if the quality problems were really caused by LUPHITOUCH, then we can make the replacement production for customer at once and the replacement production will be at the top priority.
LUPHITOUCH always regards the quality as our life. We promise to use high quality raw materials to ensure our products achieve the quality goal of our customers.We established our inner testing room. We have many high-grade testing machines and equipments in our testing room, like the life testing instruments, 2D measurement instrument, high-low temperature environment test equipment, friction tester, dropping tester, electrical function testing instruments, ink adhesion tester etc. In addition, we also have the high clean room and anti-static clean booth to ensure the product reliability and stability for those high-accuracy and anti-static required products. By such kind of advanced hardware facilities and our experienced quality management team to ensure that each batch delivery to meet our customers' high quality requirements.
> Question 1: What kind of membrane switches we can produce?
Super big size membrane switches, membrane keypads, graphic overlays, membrane circuits, LED backlighting membrane switches, LGF backlighting membrane switches, EL backlighting membrane switches, capacitive membrane switches, rubber keypad membrane switches, FPC circuit membrane switches, PCB circuit membrane switches, metal back panel membrane switches, Acrylic/PC back panel membrane switches,, waterproof membrane switch, anti-UV membrane switch, anti-scratch membrane switch, digital printing membrane switch etc.
> Question 2: What is our shipping method?
Answer: for small quantity with low weight, we ship by FedEx, UPS, DHL, TNT express; for big quantity with high weight, we ship by sea or by plane; We also make shipment as per customer's instruction;
> Question 3: What is our certification?
> Question 4: Can we provide the design service to our customer?
> Question 5: Can we provide the material sourcing service? for example sourcing the electronics components, plastic, metal, rubber, wireharness etc. parts for customer's PCBA projects?
Dongguan LuPhi Electronics Technology Co., Ltd.(short for LUPHIOUCH bellow) is established in 2008. It located in Ziliang High-Tech Industrial Park, Huaide, Humen of Dongguan. The factory area is about 3500 square meters. It close neighbors to Shenzhen, Guangzhou and Hongkong. To Shenzhen airport is just about 30 minutes and to Guangzhou Baiyun Airport is just about 1 hour.
LUPHITOUCH is a newly high-tech enterprise for human interface technology and metal, plastic molding, electronics product development, design and assembly. Our main business and products include designing and manufacturing various kinds of super big size membrane switches, membrane keypads, graphic overlays, membrane circuits, various kinds of backlit membrane keypads like the LED backlit membrane switches, EL backlit membrane switches, LGF backlit membrane switches, the high-tech capacitive membrane switches and nameplates, labels, PCBA, prototype to middle volume metal + plastic + electronics turnkey project assembly.
At the beginning of establishing of LUPHITOUCH, we made the factory planning as per the requirements of our customers from USA and Europe, and the international standard. We invested big money to get many new and high accuracy big size semi-auto silk screen printing machines, high-performance pneumatic punching machines, hot embossing machine, high accuracy laser cutting machine, auto die cutting machine etc. LUPHI always regards the quality as our life. We established our inner testing room. We have many high-grade testing machines and equipments in our testing room, like the life testing instruments, 2D measurement instrument, high-low temperature environment test equipment, friction tester, dropping tester, electrical function testing instruments, ink adhesion tester etc. In addition, we also have the high clean room and anti-static clean booth to ensure the product reliability and stability for those high-accuracy and anti-static required products. By such kind of advanced hardware facilities and our experienced quality management team to ensure that each batch delivery to meet our customers` high quality requirements. We organize the various kinds of training to our employees regularly. For example the product knowledge training, operation and assembly training, quality sense training, fire prevention training etc. to ensure our workers have the skillful operation technique to meet our promise of the on time delivery to our customers from all of the world.
80% customers of LUPHITOUCH are from USA, Australia, UK, Germany, Austria, France, Italy, Belgium, Sweden, Russia, Ukraine etc. countries and areas. We know the overseas customers` requirements and business procedures very well. On this basis, we established our own perfect business development, engineering development & design, artwork making, production and quality control system.
We promise to use high quality raw materials to ensure our products achieve the quality goal of our customers. For example, we use Autotype PET, Lexan PC from GE, Korea Changsung silver paste, ACHESON silver paste, Japan JUJO inks, Nicomatic, CJT connectors, 3M adhesive, Luxking spacers etc.
LUPHITOUCH is dedicated to be the standard founder and leader for the membrane switches industry in China!
Warmly welcome you to visit us and discuss business!
- Company Name: Dongguan LuPhi Electronics Technology Co., Ltd.
- Representative: YANG YA JUN
- Product/Service: Capacitive Membrane Keypad , LGF Bcklight Membrane Switches , Rubber Keypads , PCB/FPC Membrane Switches , Touch Panels , PCBA
- Capital (Million US $): 500000 RMB
- Year Established: 2008
- Total Annual Sales Volume (Million US $): US$2.5 Million - US$5 Million
- Export Percentage: 91% - 100%
- Total Annual Purchase Volume (Million US $): Below US$1 Million
- No. of Production Lines: 5
- No. of R&D Staff: Fewer than 5 People
- No. of QC Staff: 5 -10 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): 3,000-5,000 square meters
- Factory Location: 9th/F, C Building, Ziliang High-Tech Industrial Park, Xinfeng Rd., Huaide Village, Humen Town, Dongguan, China 523926
- Contact Person: Mr. Jason K. Young
- Tel: 86-769-81619505
